GR7789

 。

looking for a lightweight and seriously compact 4in1 ESC for your next racer? look no further! The Typhoon 4in1， 4 x 20A ESC offers excellent performance for its 35 x 35mm size. During testing this micro sized 4in1 solution reached an impressive 95A!

The Typhoon ESC has been designed for use with the Mini PX4 flight controller， but can of coarse be used with any flight control system. The ESC runs BLHeli firmware and supports the ESClinker and BLHeliSuite.

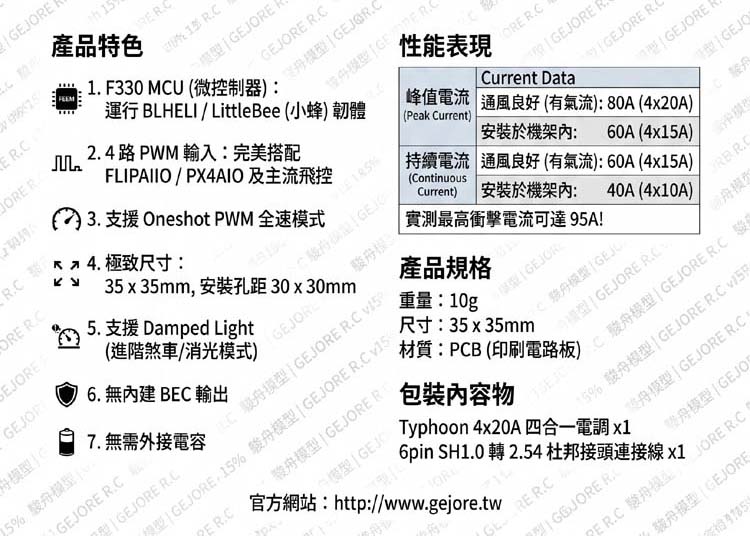

Features:
　&bull。 F330 MCU， Runs BLHELI / LittleBee firmware
　&bull。 4PWM input， works with our FLIPAIO / PX4AIO and all other popular flight controllers
　&bull。 Supports oneshot PWM
　&bull。 Only 35x35mm， mount holes 30x30mm
　&bull。 Supports damped light
　&bull。 No BEC output
　&bull。 No External capacitors needed
　&bull。 80A (4x20A) peak (under air flow)， 60A (4x15A) peak (in frame)
　&bull。 60A (4x15A) continued (under air flow)， 40A (4x10A) continued (in frame)

Specs:
　Weight: 10g
　Dimensions: 35 x 35mm
　Material: PCB

Package Includes:
　Typhoon 4x20A 4in1 ESC
　6pin SH1.0 to 2.54 DuPont cable
 。
