GR6161-05

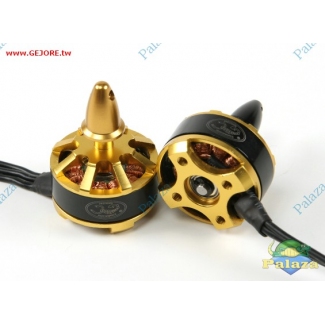

Scorpion M-2205-2350KV Brushless Outrunner Motor (CW) (CCW)
Scorpion Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price.
Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Plated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand temperatures of up to 200 degrees C (392 F).

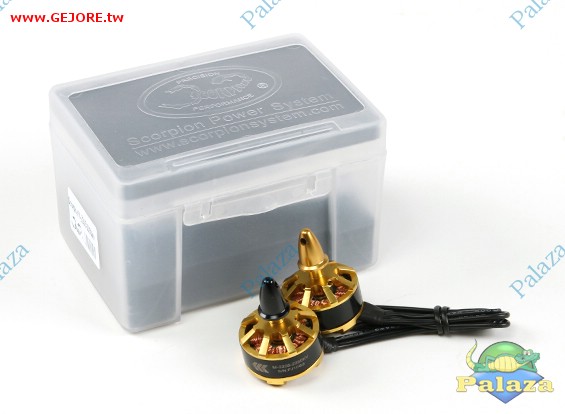

Included in the box is one CW motor and one CCW motor. A great way to get your multi-rotor flying.
Specs:
Stator Diameter: 22.0 mm (0.87 in)
Stator Thickness: 5.0 mm (0.197 in)
No. of Stator Arms: 12
Magnet Poles: 14
Motor Wind: 22 Turn Delta
Motor Wire: 4-Strand 0.21mm
Motor KV: 2350 RPM / Volt
No-Load Current (Io/10V): 0.88 Amps
Motor Resistance (Rm): 0.775 Ohms
Max Continuous Current: 25 Amps
Max Continuous Power: 420 Watts
Weight: 30.6 Grams (1.08 oz)
Outside Diameter: 27.85 mm (1.13 in)
Shaft Diameter: 2.98 mm (0.12 in)
Body Length: 21.35 mm (0.84 in)
Output Shaft Length: 12 mm (0.47 in)
Max LiPoly Cell: 4s
Motor Timing: 5deg
Drive Frequency: 8kHzIncluded:
1 x M-2205-2350KV motor CW
1 x M-2205-2350KV motor CCW
2 x Bullet nuts
8 x M3 screwsThrust Data
Prop Throttle 。 。 V 。 。 。 。 。 。 。 Amps 。 。 。 。 。 。 RPM 。 。 。 。 。 。 Thrust (G)
6 x 4 。 。 50% 。 。 。 11.1 。 。 。 。 5.38 。 。 。 。 。 。 。 11720 。 。 。 250
6 x 4 。 。 65% 。 。 。 11.1 。 。 。 。 7.47 。 。 。 。 。 。 。 13142 。 。 。 300
6 x 4 。 。 75% 。 。 。 11.1 。 。 。 。 10.19 。 。 。 。 。 14927 。 。 。 400
6 x 4 。 。 85% 。 。 。 11.1 。 。 。 。 13.39 。 。 。 。 。 16331 。 。 。 500
6 x 4 。 。 100% 。 11.1 。 。 。 。 17.14 。 。 。 。 。 17817 。 。 。 550
6 x 4 。 。 50% 。 。 。 14.8 。 。 。 。 7.94 。 。 。 。 。 。 。 14403 。 。 。 350
6 x 4 。 。 65% 。 。 。 14.8 。 。 。 。 11.85 。 。 。 。 。 16670 。 。 。 500
6 x 4 。 。 75% 。 。 。 14.8 。 。 。 。 15.66 。 。 。 。 。 18242 。 。 。 600
6 x 4 。 。 85% 。 。 。 14.8 。 。 。 。 19.87 。 。 。 。 。 19870 。 。 。 700
6 x 4 。 。 100% 。 14.8 。 。 。 。 25.22 。 。 。 。 。 21421 。 。 。 825Kv(rpm/v) 。2350
Weight (g) 。30.6
Max Current(A) 。25
Resistance(mh) 。0
Max Voltage(V) 。0
Power(W) 。420
Shaft A (mm) 。5
Length B (mm) 。20
Diameter C (mm) 。28
Can Length (mm) 。0
Total Length E (mm) 。32
